Auto REF-Kerato Refractometer K-900/R-800

Auto REF-Kerato Refractometer
K-900/R-800

New Generation DESIGN & STYLE

Exquisite detail and quality.
Sophisticated shape combined with soft curves and the attractive color with high quality two-tone metallic and pearlescent paintwork which complements any interior and appeals atmosphere of trust to the customer. Feather-touch sensor button

The feather-touch sensor button used to interface with the screen enables sensitive and accurate operation.

Newly designed optical unit with further improved accuracy

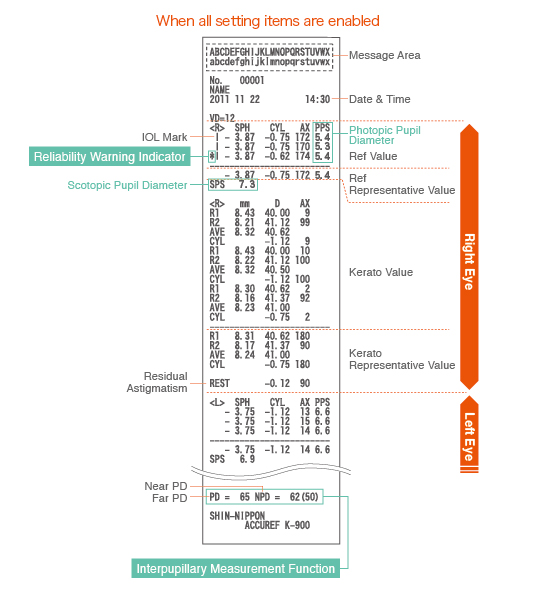

The newly designed optical unit allows measurement of the minimum pupil diameter up to 2.0 mm and high-accuracy measurement. Useful function for actual measurement such as display of reliability warning indicator has been added.

Improved side flaps,head rest and chin rest

Side flaps mounted to each side of the measurement window enabling to block out the light realizes high accuracy. The modified shapes of the forehead rest and the chin rest help to minimize stress of the patient.

New Joystick

The newly designed optical unit allows measurement of the minimum pupil diameter up to 2.0 mm and high-accuracy measurement. Useful function for actual measurement such as display of reliability warning indicator has been added.

The completely redesigned joystick with the shape and top button allows the operator to control the unit with more precise and instinctive movement.

Newly designed IOL Mode [color focus indicator]

A subject with IOL was conventionally difficult to measure but this newly designed IOL mode has made it much easier.

Scotopic & Photopic Pupil Diameter Measurement

Both scotopic and photopic measurements are available.

※ S.P.S：Scotopic Pupil Size
P.P.S：Photopic Pupil Size

Unique LCD Monitor

A swivel function to the left (30°) and a vertical tilt function (40°) have been added to the monitor unit. This swivel function allows measurement while supporting the patient.

AUTO REF-KERATOMETER ACCUREF K-900 SPECIFICATION

Refractive measurement range (Ref measurement)	Sphere (S)	Measurement range	-30D～±22D（VD=12） -22D～±30D（VD=0）
		Unit	0.12D, 0.25D (Switching)
	Cylinder (C)	Measurement range	0D～±10D (VD=0)
		Unit	0.12D, 0.25D (Switching)
		symbol	-, +, ± (Switching)
	Axis (A)	Measurement range	0°～180°
		Unit	1°
	Vertex distance		0, 10, 12, 13.5, 15mm
	Minimum pupil diameter measurable		φ2.0mm
Corneal curvature radius measurement	Corneal curvature radius	Measurement range	5.0mm～10.0mm
		Unit	0.01mm
	Cylinder (C)	Measurement range	0D～±10D
		Unit	0.12D, 0.25D (Switching)
		symbol	mm, -D, +D (Switching)
	Corneal refractivity	Measurement range	33.75D～67.5D (where corneal refractive index n＝1.3375)
		Unit	0.12D, 0.25D (Switching)
	Axis angle	Measurement range	0°～180°
		Unit	1°
PD measurement	Measurement range		85mm(Near PD output)
	Corneal curvature Unit		1mm
Pupil diameter measurement	Measurement range		φ2.0mm～φ8.5mm
	Corneal curvature Unit		0.1mm
Fog controle	Fogging for each measurement（Auto） Fogging is provided at the first measurement followed by continuous measurement（Auto-Quick）
Size	(W) 240mm　(D) 422mm　(H) 430mm
Movement range of the measurement unit	Forward/backward		±22mm
	Horizontal direction		±43mm
	Vertical direction		±17mm
Movement range of the chin rest	vertical ±30mm
Movement range of LCD	+30°swivel (left only), +40°tilt
Weight	approx. 13kg
Built-in monitor body	5.7 inch color LCD monitor
Printer	thermal line printer (paper width 58mm)
Power voltage/ frequency	AC100V-240V, 50/60Hz
Power consumption	60VA
Power saving function	OFF, 3, 5, 10min. (selectable)

AUTO REF-KERATOMETER ACCUREF K-900 SPECIFICATION

Refractive measurement range (Ref measurement)	Sphere (S)	Measurement range	-30D～±22D（VD=12） -22D～±30D（VD=0
		Unit	0.12D, 0.25D (Switching)
	Cylinder (C)	Measurement range	0～±10D (VD=0)
		Unit	0.12D, 0.25D (Switching)
		symbol	-, +, ± (Switching)
	Axis (A)	Measurement range	0°～180°
		Unit	1°
	Vertex distance		0, 10, 12, 13.5, 15mm
	Minimum pupil diameter measurable		φ2.0mm
PD measurement	Measurement range		85mm(Near PD output)
	Corneal curvature Unit		1mm
Pupil diameter measurement	Measurement range		φ2.0mm～φ8.5mm
	Corneal curvature Unit		0.1mm
Measurement time
	Refractive measurement range		Approx. 0.07sec.
Fog controle	Fogging for each measurement（Auto） Fogging is provided at the first measurement followed by continuous measurement（Auto-Quick）
Size	(W) 240mm　(D) 422mm　(H) 430mm
Movement range of the measurement unit	Forward/backward		±22mm
	Horizontal direction		±43mm
	Vertical direction		±17mm
Movement range of the chin rest	vertical ±30mm
Movement range of LCD	+30°swivel (left only), +40°tilt
Weight	approx. 13kg
Built-in monitor body	5.7 inch color LCD monitor
Printer	thermal line printer (paper width 58mm)
Power voltage/ frequency	AC100V-240V, 50/60Hz
Power consumption	60VA
Power saving function	OFF, 3, 5, 10min. (selectable)
